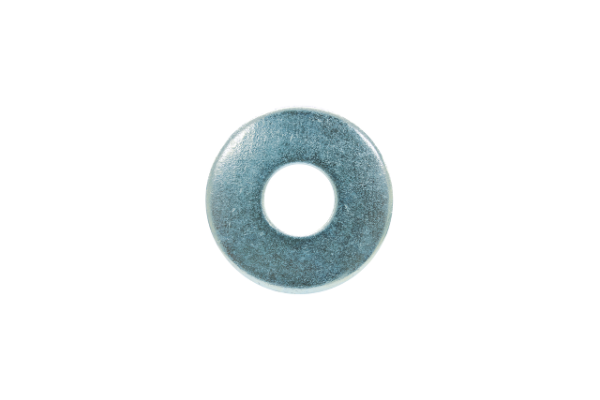

RONDELLE PLATE MOYENNE M

Description

Matière

acier

Traitement

Brut, Galvanisé à Chaud, Zingué Blanc

Norme NF

25-513

Matière

Ce produit est actuellement en rupture et indisponible.

UGS : 610 Catégories : ,

Caractéristiques dimensionnelles

ø

4

5

6

8

10

12

14

16

18

20

22

d1

4,3

5,3

6,4

8,4

10,5

13

15

17

19

21

23

d2

10

12

14

18

22

27

30

32

36

40

45

s

0,8

1

1,2

1,5

2

2,5

2,5

3

3

3

3



ø

24

27

30

33

36

39

42

45

48

52

d1

25

28

31

34

37

40

43

46

52

56

d2

50

55

60

65

70

75

80

85

92

98

s

4

4

4

5

5

6

6

7

7

8
